What We Offer !

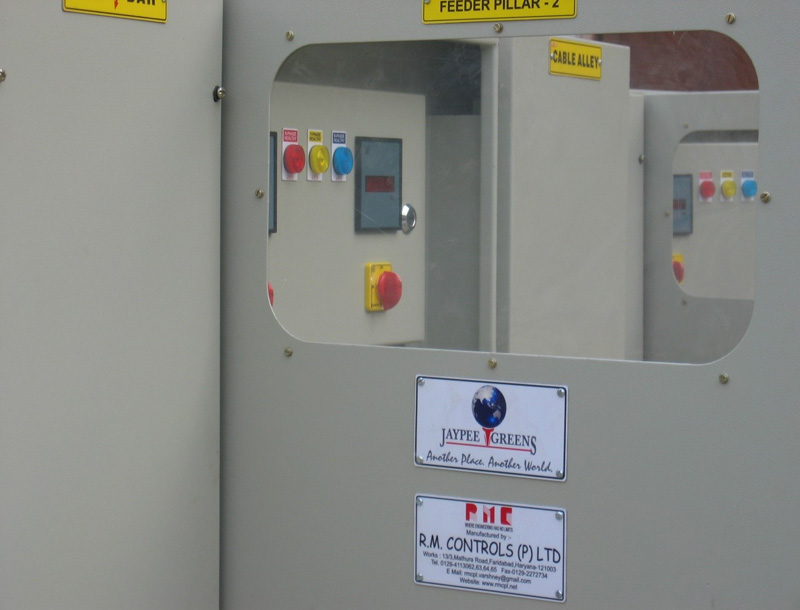

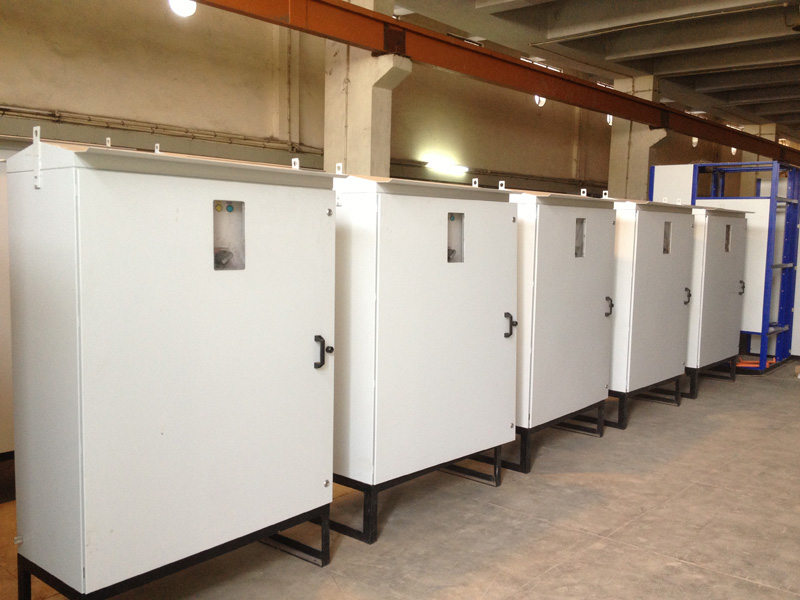

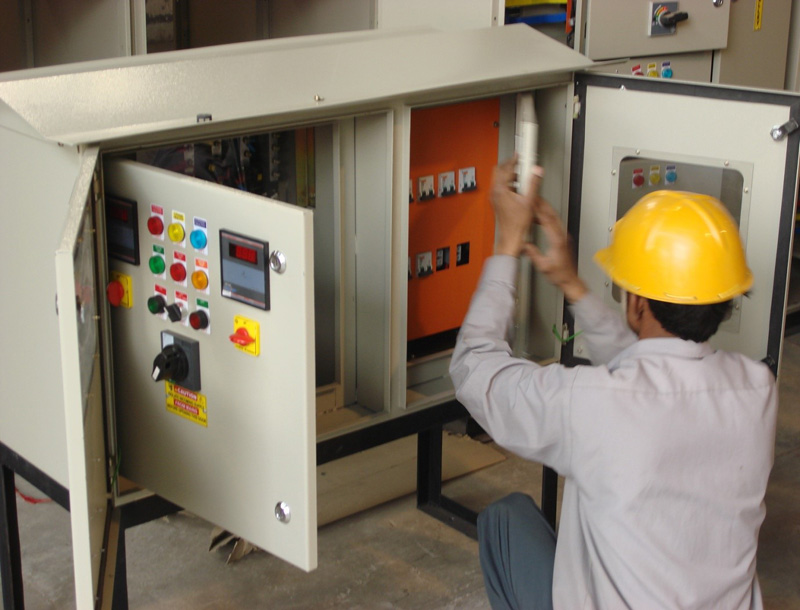

Feeder Pillars & Db's
Having Weather Resistant Construction for Safety and Durability, our Feeder Pillars are superior in quality and thus are largely demanded in the industry
Specifications :
| System | System 3 Phase, 3 or 4 Wire, 50 Hz |
| Rated Current | Upto 1000A |
| Rated Service Voltage | Upto 690V |
| Rated Insulation | Upto 1000V |
| Short Time Current | 70/100 KA for 1 Sec, 220 KA Peak |
| Degree of Protection | Upto IP54/55 |
| Form of Separation | Upto Form 3 Type - 2 |
| (optional Form 4 Type - 3 , 4 , 5) | |
| Type Tested For | Short Time Current |
| Temperature Rise | |
| Degree of Protection | |
| Designed Ambient | 45 degree C |
| Configuration | Fixed Type |
| Construction | Double Door |
| Busbar | Copper or Aluminium |
| Application | Control & Protection of Distribution System |
- Suitable for Indoor & Outdoor Installations
- Power Coated with Weather Proof Paints
- Single & Double Door Construction
