What We Offer !
Busducts & Rising Mains

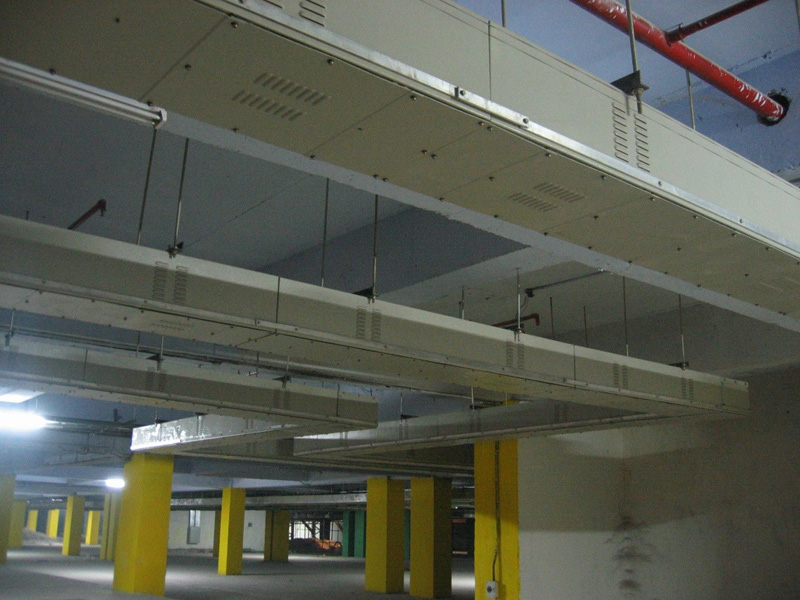

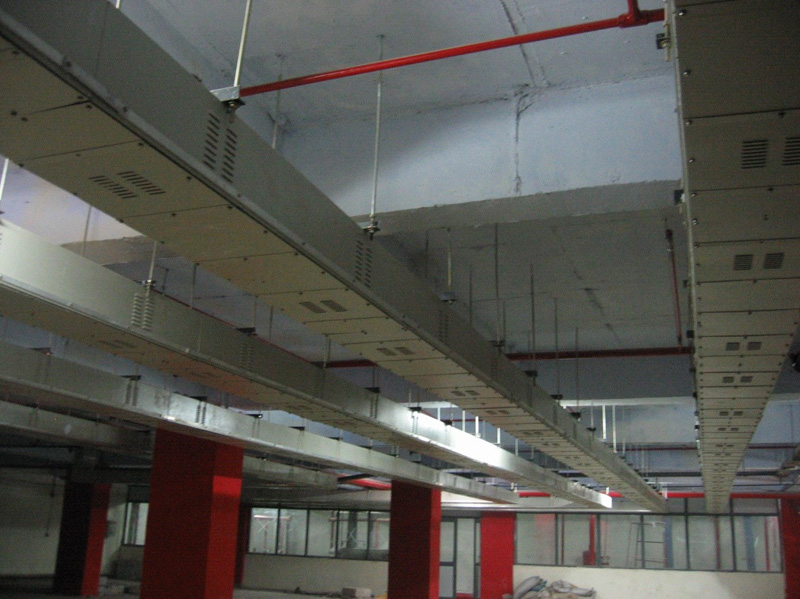

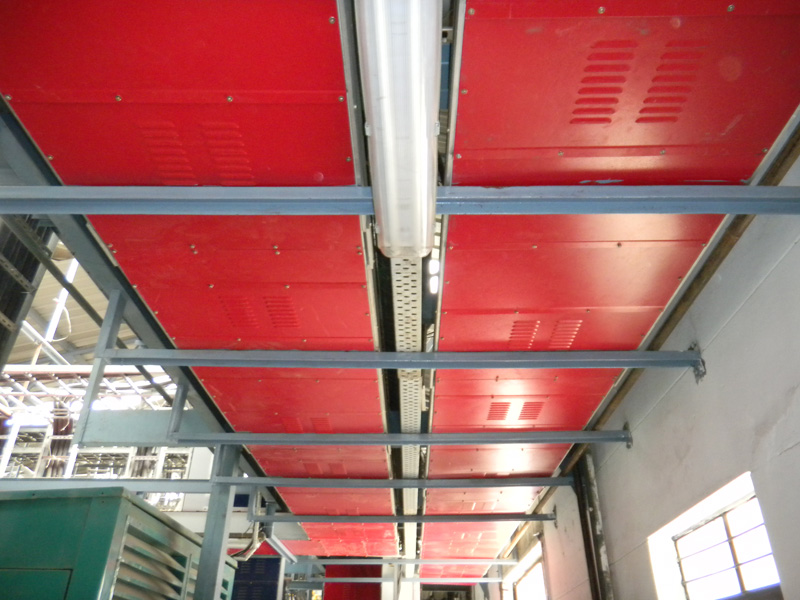

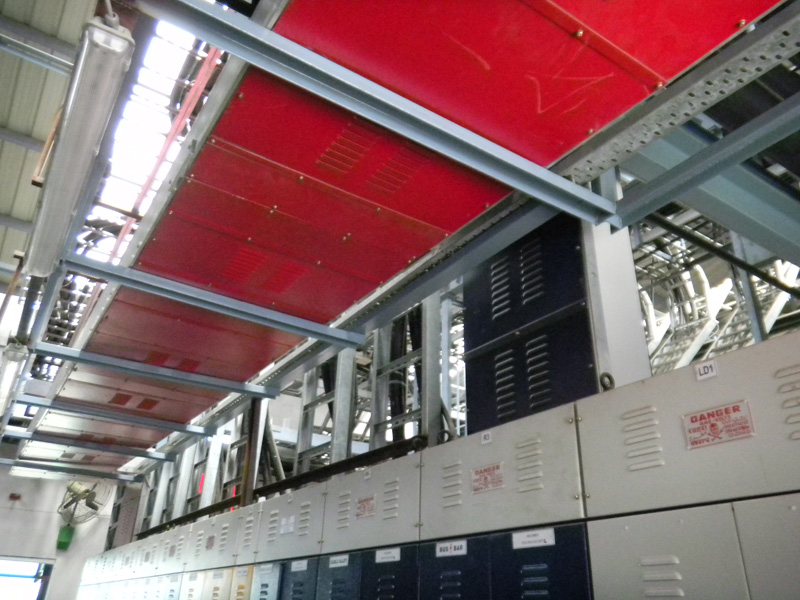

Leveraging upon our quality expertise, we are engaged in manufacturing air cooled bus ducts. These are designed as per CLIENT's requirement and we make sure that all the demands are easily met with.
We offer Air Cooled Bus Ducts under following specifications
Specifications :
| System | System 3 Phase, 3 or 4 Wire, 50 Hz |
| Rated Current | Upto 6300A |
| Rated Service Voltage | Upto 690V |
| Rated Insulation | Upto 1000V |
| Short Time Current | 70/100 KA for 1 Sec, 220 KA Peak |
| Degree of Protection (Indoor) | Upto IP 40 / 42 / 50 |
| Degree of Protection (Outdoor)) | Upto IP 54/55 |
| Type Tested For | Short Time Current |
| Temperature Rise | |
| Degree of Protection | |
| Designed Ambient | 45 degree C |
| Configuration | Fixed Type |
| Operating Conditions Humidity | 95% |
| Bus System | Non-Segregated Phase |
| Segregated Phase | |
| Insulate Phase |
- Suitable for Indoor & Outdoor Installations
- Power Coated with Weather Proof Paints
- Single & Double Door Construction
